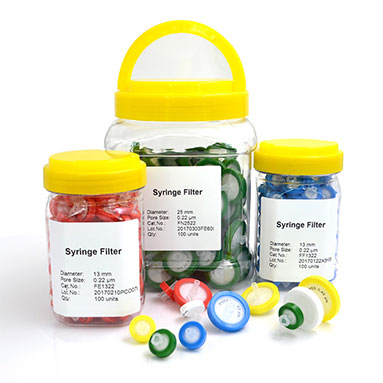

HPLC Syringe Filter

Master the core technology of production vials

Product Description:

1.Syring Filter，Female Luer-Lok Inlet,
Outlet: Male Luer Slip
2.Diameter (mm):13mm/25mm
3.Pore size: 0.22μm/0.45μm
4.Membrane: Nylon、Hydrophilic PVDF、Hydrophilic PTFE、
Hydrophobic PTFE、PES、MCE、Hydrophilic PP、
Cellulose Acetate

Features:

Can be used for the Service as follows but not only:
1) Integrity Test

2) Chemical Compatibility Test

3) Extractables

4) Adsorption Test

5) Bacterial Survival Test
6) Bacterial Retention Test
7) Preparing Normative Documents

Technical parameter:

1.Aijiren New Syringe Filter


Part No.	FN1322 (0.22μm) FN1345 (0.45μm)	FN2522 (0.22μm) FN2545 (0.45μm)	FF1322 (0.22μm) FF1345 (0.45μm)	FF2522 (0.22μm) FF2545 (0.45μm)
Description	13mm Nylon Syringe Filter 13mm Diameter Polypropylene Housing (Green color)	25mm Nylon Syringe Filter 25mm Diameter Polypropylene Housing (Green color)	13mm Hydrophilic PVDF Syringe Filter 13mm Diameter Polypropylene Housing (Blue color)	25mm Hydrophilic PVDF Syringe Filter 25mm Diameter Polypropylene Housing (Blue color)

Part No.	FE1322I (0.22μm) FE1345I (0.45μm)	FE2522I (0.22μm) FE2545I (0.45μm)	FE1322 (0.22μm) FE1345 (0.45μm)	FE2522 (0.22μm) FE2545 (0.45μm)
Description	13mm Hydrophilic PTFE Syringe Filter 13mm Diameter Polypropylene Housing (Red color)	25mm Hydrophilic PTFE Syringe Filter 25mm Diameter Polypropylene Housing (Red color)	13mm Hydrophobic PTFE Syringe Filter 13mm Diameter Polypropylene Housing (Red color)	25mm Hydrophobic PTFE Syringe Filter 25mm Diameter Polypropylene Housing (Red color)

Part No.	FS1322 (0.22μm) FS1345 (0.45μm)	FS2522 (0.22μm) FS2545 (0.45μm)	FM1322 (0.22μm) FM1345 (0.45μm)	FM2522 (0.22μm) FM2545 (0.45μm)
Description	13mm PES Syringe Filter 13mm Diameter Polypropylene Housing (Yellow color)	25mm PES Syringe Filter 25mm Diameter Polypropylene Housing (Yellow color)	13mm MCE Syringe Filter 13mm Diameter Polypropylene Housing (Orange color)	25mm MCE Syringe Filter 25mm Diameter Polypropylene Housing (Orange color)

Part No.	FP1322 (0.22μm) FP1345 (0.45μm)	FP2522 (0.22μm) FP2545 (0.45μm)	FC1322 (0.22μm) FC1345 (0.45μm)	FC2522 (0.22μm) FC2545 (0.45μm)
Description	13mm PP Syringe Filter 13mm Diameter Polypropylene Housing (White color)	25mm PP Syringe Filter 25mm Diameter Polypropylene Housing (White color)	13mm Cellulose Acetate Syringe Filter 13mm Diameter Polypropylene Housing (Orange color)	25mm Cellulose Acetate Syringe Filter 25mm Diameter Polypropylene Housing (Orange color)
